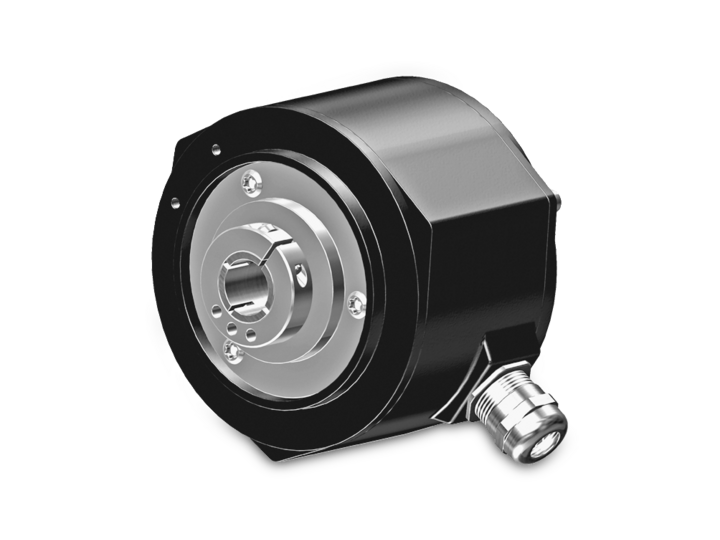

Description
Technical data
Technical data – electrical ratings
- Voltage supply
-
- 9…26 VDC
- 5 VDC ±5 %
- Consumption w/o load
-
- ≤100 mA
- Pulses per revolution
-
- 8 … 5000
- Phase shift
-
- 90 ° ±20°
- Duty cycle
-
- 40…60 %
- Reference signal
-
- Zero pulse, width 90°
- Sensing method
-
- Optical
- Output frequency
-
- ≤120 kHz
- ≤300 kHz (on request)
- Output signals
-
- K1, K2, K0 + inverted
- Output stages
-
- HTL
- TTL/RS422
- Interference immunity
-
- EN 61000-6-2
- Emitted interference
-
- EN 61000-6-3
- Approval
-
- CE
- UL approval / E217823
Technical data – mechanical design
- Size (flange)
-
- ø86.5 mm
- Shaft type
-
- ø10…16 mm (through hollow shaft)
- Admitted shaft load
-
- ≤100 N axial
- ≤200 N radial
- Protection EN 60529
-
- IP 54
- Operating speed
-
- ≤12000 rpm (mechanical)
- Operating torque typ.
-
- 1 Ncm
- Rotor moment of inertia
-
- 18 gcm²
- Material
-
- Housing: aluminium die-cast
- Shaft: stainless steel
- Operating temperature
-
- -30…+85 °C
- -25…+85 °C (>3072 pulses)
- Resistance
-
- IEC 60068-2-6
- Vibration 10 g, 20-2000 Hz
- IEC 60068-2-27
- Shock 100 g, 6 ms
- Connection
-
- Connecting terminal
- Weight approx.
-
- 650 g
