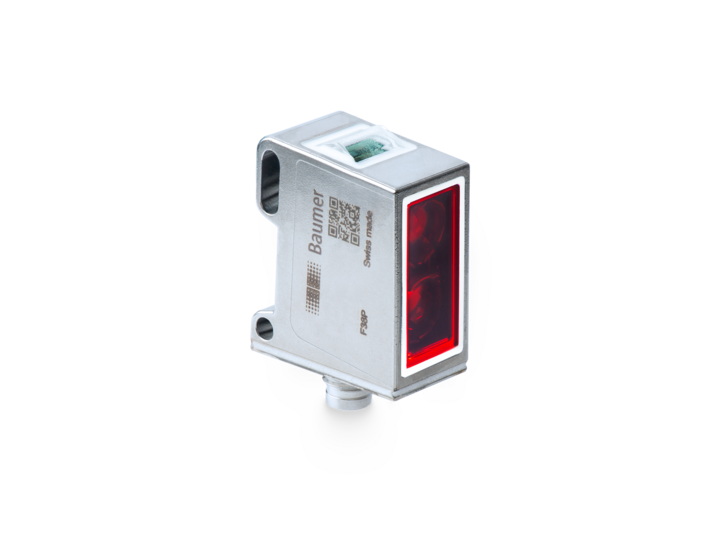

O300W.TL-ZZZZ.PVN

O300W.TL-ZZZZ.PVN

Request for quote
Download PDF
SKU: 11181228 Categories: , ,

In stock

Description

Technical data
General data

Type
  • Through beam sensor
Special type
  • Washdown design
Emitter / receiver
  • Emitter
Light source
  • Pulsed red laser diode
Actual range Sb
  • 40 m
Nominal range Sn
  • 75 m
Power on indication
  • LED green
Laser class
  • 1
Distance to focus
  • Parallel beam
Wave length
  • 656 nm
Alignment optical axis
  • < 2°
Approvals/certificates
  • Ecolab
Electrical data

Voltage supply range +Vs
  • 11 … 30 VDC
Current consumption max. (no load)
  • 30 mA
Current consumption typ.
  • 25 mA
Reverse polarity protection
  • Yes
Mechanical data

Width / diameter
  • 16.5 mm
Height / length
  • 34.7 mm
Depth
  • 28.2 mm
Design
  • Rectangular
Housing material
  • Stainless steel 1.4404 (V4A)
Front (optics)
  • PMMA
Connection types
  • Connector M8 4 pin
Ambient conditions

Operating temperature
  • -10 … +60 °C
Protection class
  • IP 68/69K & proTect+
