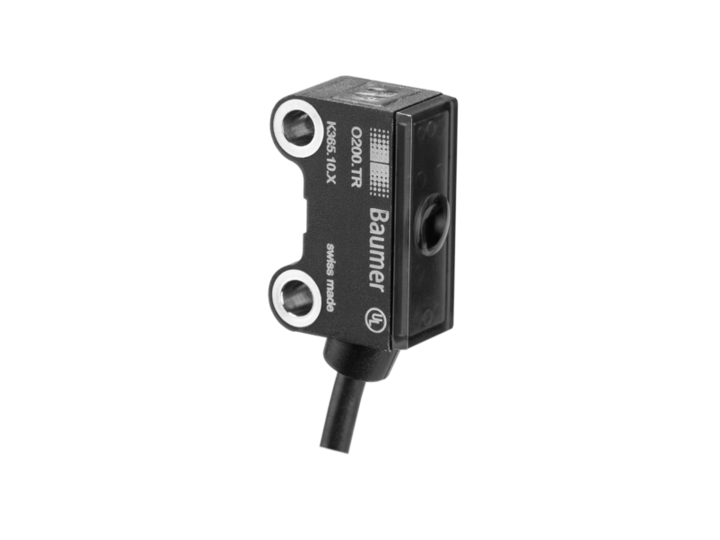

O200.TR-ZZZX.72NV

O200.TR-ZZZX.72NV

Request for quote
Download PDF
SKU: 11210278 Categories: , ,

In stock

Description

Technical data
General data

Type
  • Through beam sensor
Emitter / receiver
  • Emitter
Light source
  • Pulsed red LED
Actual range Sb
  • 5 m
Nominal range Sn
  • 6 m
Power on indication
  • LED green
Wave length
  • 644 nm
Alignment optical axis
  • < 1,5°
Electrical data

Voltage supply range +Vs
  • 10 … 30 VDC
Current consumption max. (no load)
  • 20 mA (@ 30 VDC)
Current consumption typ.
  • 16 mA (@ 24 VDC)
Reverse polarity protection
  • Yes
Mechanical data

Width / diameter
  • 8 mm
Height / length
  • 25.1 mm
Depth
  • 14.1 mm
Design
  • Rectangular
Mechanical mounting
  • Sleeve smooth (stainless steel)
Housing material
  • Plastic (ASA, PMMA)
Front (optics)
  • PMMA
Connection types
  • Flylead connector M8 4 pin, L=200 mm
Cable characteristics
  • PVC / PVC 4 x 0,08 mm²
Ambient conditions

Operating temperature
  • -25 … +50 °C
Protection class
  • IP 67
