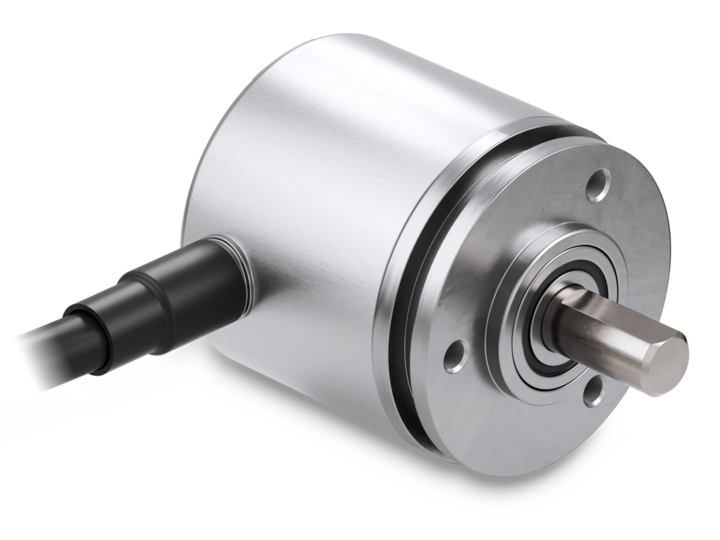

Description
Technical data
Technical data – electrical ratings
- Voltage supply
-
- 8…30 VDC (HTL)
- Reverse polarity protection
-
- Yes
- Short-circuit proof
-
- Yes
- Consumption typ.
-
- 60 mA (5 VDC, w/o load)
- 30 mA (24 VDC, w/o load)
- Pulses per revolution
-
- 100
- Phase shift
-
- 90 ° ±10°
- Duty cycle
-
- 40…60 %
- Reference signal
-
- Zero pulse, width 90° ±10°
- Sensing method
-
- Optical
- Output frequency
-
- ≤160 kHz (HTL)
- Output signals
-
- A+, B+, R+, A-, B-, R-
- Output stages
-
- HTL/push-pull
- Interference immunity
-
- EN 61000-6-2
- Emitted interference
-
- EN 61000-6-4
- Approval
-
- UL-Listing: E217823
Technical data – mechanical design
- Size (flange)
-
- ø30 mm
- Shaft type
-
- ø5 x 12 mm solid shaft
- Admitted shaft load
-
- ≤10 N axial
- ≤20 N radial
- Flange
-
- Synchro flange
- Protection EN 60529
-
- IP 65
- Operating speed
-
- ≤8000 rpm
- Starting torque
-
- ≤0.1 Ncm (+20 °C)
- Material
-
- Housing: aluminium
- Shaft: stainless steel
- Operating temperature
-
- -25…+85 °C
- Relative humidity
-
- 95 % non-condensing
- Resistance
-
- EN 60068-2-6
- Vibration 10 g, 10-2000 Hz
- EN 60068-2-27
- Shock 100 g, 2 ms
- Connection
-
- Cable radial, open cable end, length 1 m
- Weight approx.
-
- 50 g
