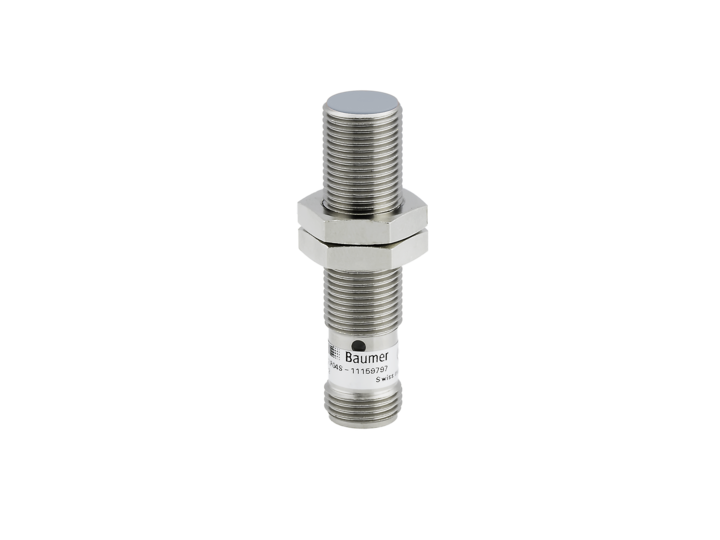

IFRW 12P1501/S14L

IFRW 12P1501/S14L

Ajánlatkérés
PDF letöltése
Cikkszám: 10236111 Kategóriák: , ,

Leírás

Technical data
General data

Mounting type
  • Flush
Special type
  • Welding and magnetic noise
Nominal sensing distance Sn
  • 2 mm
Hysteresis
  • 3 … 20 % of Sr
Output indicator
  • 3 port LED red
Electrical data

Switching frequency
  • 1 kHz
Voltage supply range +Vs
  • 10 … 30 VDC
Current consumption max. (no load)
  • 10 mA
Output circuit
  • PNP make function (NO)
Voltage drop Vd
  • <1 VDC
Output current
  • 250 mA
Short circuit protection
  • Yes
Reverse polarity protection
  • Yes
Mechanical data

Design
  • Cylindrical threaded
Material (sensing face)
  • PTFE coated
Housing material
  • Brass chromium plated
Dimension
  • 12 mm
Housing length
  • 50 mm
Connection types
  • Connector M12
Ambient conditions

Operating temperature
  • -25 … +75 °C
Protection class
  • IP 67
