Technical data
General data
- Mounting type
-
- Flush
- Special type
-
- High temperature
- Nominal sensing distance Sn
-
- 4 mm
- Hysteresis
-
- 3 … 20 % of Sr
Electrical data
- Switching frequency
-
- 2 kHz
- Voltage supply range +Vs
-
- 6 … 30 VDC
- Current consumption max. (no load)
-
- 12 mA
- Output circuit
-
- PNP make function (NO)
- Voltage drop Vd
-
- <3 VDC
- Output current
-
- 100 mA
- Short circuit protection
-
- Yes
- Reverse polarity protection
-
- Yes
Mechanical data

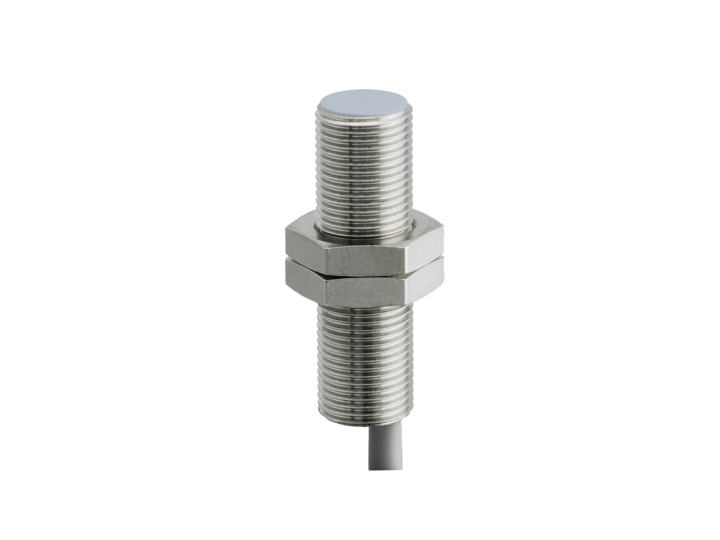

- Design
-
- Cylindrical threaded
- Material (sensing face)
-
- PBT
- Housing material
-
- Brass nickel plated
- Dimension
-
- 12 mm
- Housing length
-
- 40 mm
- Connection types
-
- Cable FEP, 1 m
Ambient conditions
- Operating temperature
-
- -25 … +100 °C
- Protection class
-
- IP 67
