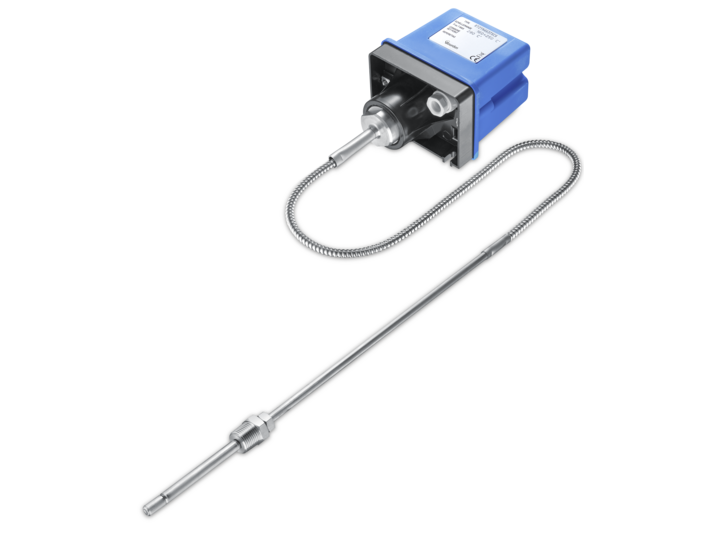

RT2Y

RT2Y

Ajánlatkérés
PDF letöltése
Kategóriák: , ,

Leírás

Technical data
Housing

Protection rating (EN 60529)
  • IP66
Cover
  • Black painted, zamak
Body
  • Blue, polyamide PA 6
Mounting
  • Wall mounting, 2 x M5 screws
Scale
  • Internal graduated scale
Bulb
  • Stainless steel 1.4404 / AISI 316L
Performance

Min. temperature range
  • -46°C … +0°C
Max. temperature range
  • +160°C … +250°C
Repeatability
  • ± 1 % FS
Temperature

Ambient temperature
  • -30°C … +55°C (T6)
  • -30°C … +70°C (T5)
Storage temperature
  • -40°C … +40°C ,Code 40
  • -40°C … +60°C ,Code 60
  • -40°C … +70°C, other codes
Media temperature
  • -46°C … +250°C, depends on the scale
Wetted parts

Process connection material
  • Stainless steel 1.4404 / AISI 316L
Electrical data

Electrical connection
  • Via internal terminal block with cable gland for Ø 5.5 to 8.5 mm
Ground connection
  • Via internal terminal block
Adjustment
  • Internal adjustment possible for set point
Weight

Temperature switch
  • 960 g + transmission
Approval / Conformities

ATEX/IECEx Certificate
  • LCIE 03 ATEX 6160X
  • IECEx LCIE 15.0058X
ATEX/IECEx
  • ATEX directive 2014/34/UE
  • Ex I M1
  • Ex ia I Ma
  • Ex II 2 G
  • Ex ia IIC T6 or T5 Ga
  • Further information can be found in the ATEX approval
