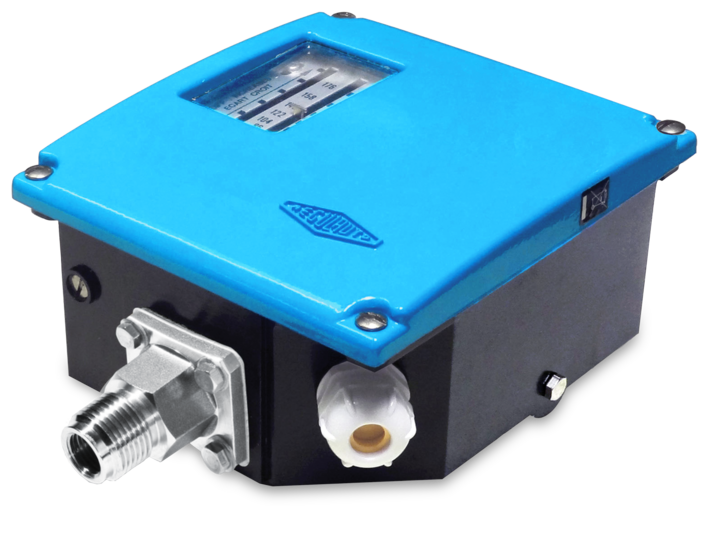

RPPN7

RPPN7

Ajánlatkérés
PDF letöltése
Kategóriák: , ,

Leírás

Technical data
Housing

Protection rating (EN60529)
  • IP66
Cover
  • Blue painted, zamak
  • Captive stainless steel screws
Case material
  • Black painted, zamak
Mounting
  • Wall mounting bracket
Scale
  • Internal, accuracy on reading ± 5 % FS
Performance

Min. pressure range
  • -1 … 0 bar
Max. pressure range
  • 60 … 600 bar
Repeatability
  • ± 1 % FS
Temperature: Pressure range codes 200 to 602

Ambient temperature
  • -25°C … +55°C
Storage temperature
  • -40°C … +40°C ,Code 40
Media temperature
  • -50°C … +200°C
Wetted parts

Piston
  • Nickel plated steel
Bellow
  • Stainless steel 1.4404 / AISI 316L
  • Stainless steel 1.4432 / AISI 316L
Electrical data

Electrical connection
  • Via internal terminal block with plastic cable gland for Ø 7 to 10.5 mm
Ground connection
  • Via internal terminal block
Adjustment
  • 2 external adjustment screws on top of the case for set point and deadband
Approval / Conformities

CE conformity
  • Low Voltage Directive 2014/35/UE
