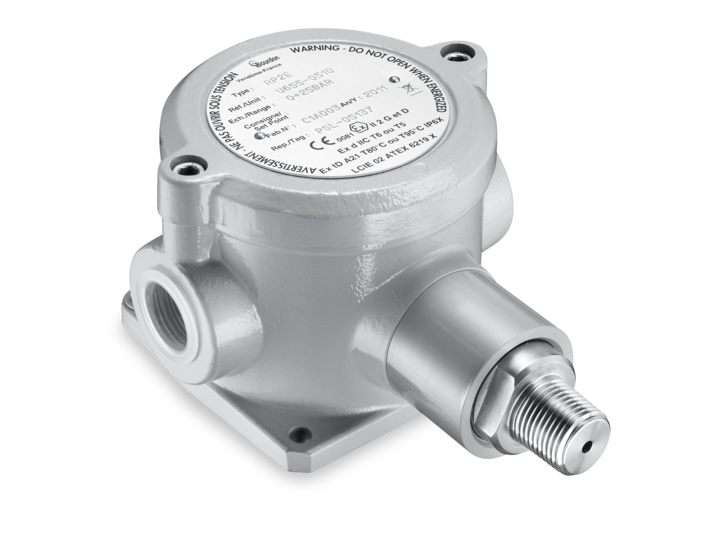

RP2E

RP2E

Ajánlatkérés
PDF letöltése
Kategóriák: , ,

Leírás

Technical data
Housing

Protection rating (EN60529)
  • IP66
Case material
  • Grey painted, Aluminum
Mounting
  • Wall mounting, 2 x M6 x 16 screws
Scale
  • Internal graduated scale
Weight
  • 1800 g
Performance

Min. pressure range
  • 0 … 1 bar
Max. pressure range
  • 0 … 100 bar
Repeatability
  • ± 1 % FS , (constant cycle)
Temperature

Ambient temperature
  • -20°C … +70°C (T5)
  • -20°C … +60°C (T6)
Storage temperature
  • -40°C … +40°C ,Code 40
Media temperature
  • -40°C … +150°C
Wetted parts

Process connection material
  • Stainless steel 1.4404 / AISI 316L
Diaphragm
  • Stainless steel 1.4404 / AISI 316L
Electrical data

Electrical connection
  • Via internal terminal block with cable gland 3/4 NPT (ATEX/IECEx certified) for Ø 7 to 12 mm
Approval / Conformities

ATEX/IECEx Certificate
  • LCIE 02 ATEX 6219X
  • IECEx LCIE 15.0059X
ATEX/IECEx
  • ATEX directive 2014/34/UE
  • Ex II 2 G
  • Further information can be found in the ATEX approval
