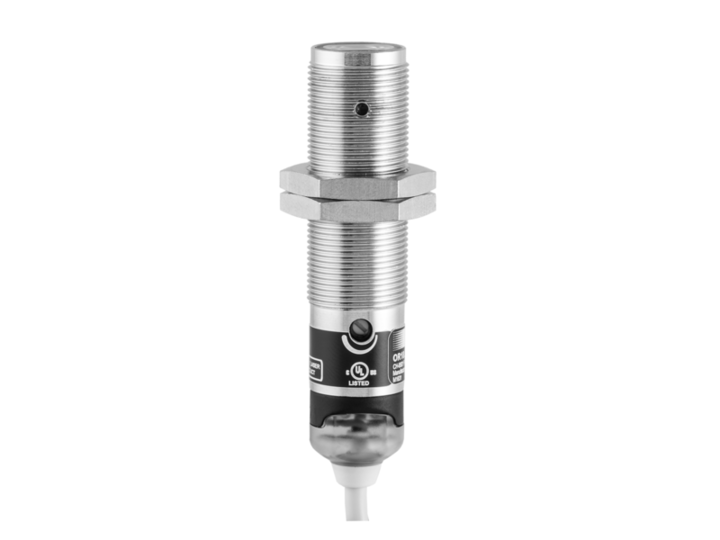

OR18.ZL-PV1P.7BCV/B013

OR18.ZL-PV1P.7BCV/B013

Ajánlatkérés
PDF letöltése
Cikkszám: 11157803 Kategóriák: , ,

Leírás

Technical data
General data

Type
  • Intensity difference
Sensing distance Tw
  • 10 … 300 mm
Power on indication
  • LED green
Output indicator
  • LED yellow
Sensing distance adjustment
  • Potentiometer, 270°
Distance to focus
  • 100 mm
Suppression of reciprocal influence
  • Yes
Light Source

Light source
  • Pulsed red laser diode
Laser class
  • 1
Wave length
  • 630 nm
Electrical data

Response time / release time
  • < 0.34 ms
Voltage supply range +Vs
  • 10 … 30 VDC
Current consumption max. (no load)
  • 45 mA
Current consumption typ.
  • 35 mA
Voltage drop Vd
  • <2 VDC
Output function
  • Light / dark operate
Output circuit
  • PNP complementary
Output current
  • 100 mA
Short circuit protection
  • Yes
Reverse polarity protection
  • Yes
Mechanical data

Width / diameter
  • 18 mm
Height / length
  • 77 mm
Design
  • Cylindrical threaded
Housing material
  • Brass nickel plated
Front (optics)
  • PMMA
Connection types
  • Cable 4 pin, 2 m
Ambient conditions

Protection class
  • IP 67
Operating temperature
  • -10 … +55 °C
