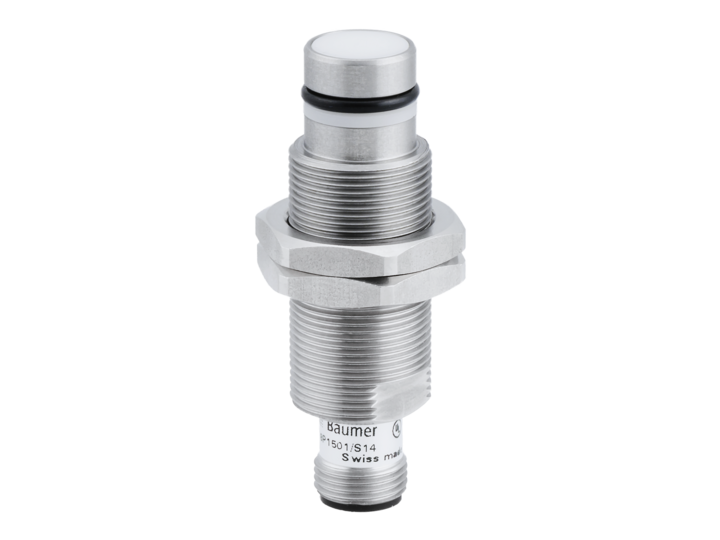

IFRP 18P1501/S14

IFRP 18P1501/S14

Ajánlatkérés
PDF letöltése
Cikkszám: 10118745 Kategóriák: , ,

Leírás

Technical data
General data

Mounting type
  • Flush
Special type
  • High pressure
Nominal sensing distance Sn
  • 2 mm
Hysteresis
  • 2 … 20 % of Sr
Electrical data

Switching frequency
  • 3 kHz
Voltage supply range +Vs
  • 6 … 30 VDC
Current consumption max. (no load)
  • 12 mA
Output circuit
  • PNP make function (NO)
Voltage drop Vd
  • <2 VDC
Output current
  • 200 mA
Short circuit protection
  • Yes
Reverse polarity protection
  • Yes
Mechanical data

Design
  • Cylindrical threaded
Material (sensing face)
  • Ceramic
Housing material
  • Stainless steel
Peak pressure
  • 1000 bar
Operating pressure static
  • < 500 bar
Operating pressure dynamic
  • < 350 bar
Dimension
  • 18 mm
Housing length
  • 60 mm
Connection types
  • Connector M12
Ambient conditions

Operating temperature
  • -25 … +80 °C
Protection class
  • IP 68/67 (sensing face/sensor)
