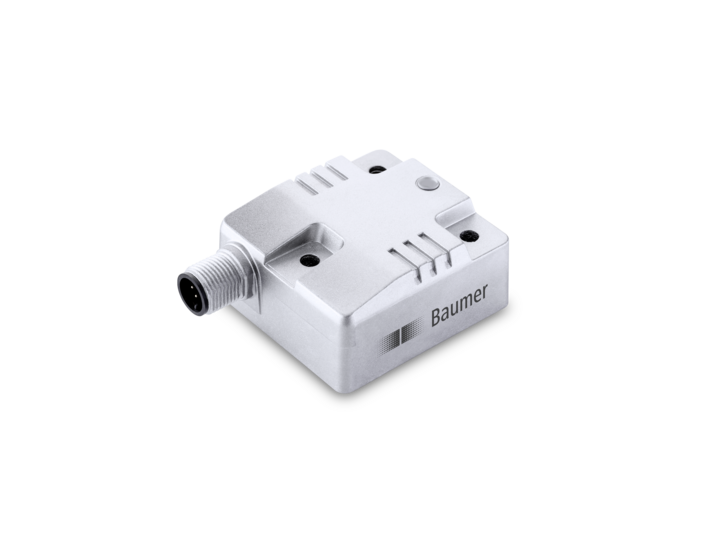

GIM500R - 2-dimensional

GIM500R – 2-dimensional

Ajánlatkérés
PDF letöltése
Kategóriák: , ,

Leírás

Technical data
Technical data – electrical ratings

Voltage supply
  • 8…36 VDC
Reverse polarity protection
  • Yes
Consumption w/o load
  • ≤40 mA (24 VDC)
Initializing time
  • ≤ 0.5 s after power on
Interface
  • CANopen®
  • SAE J1939
  • Analog (4…20 mA / 0.5…4.5 V / 0…5 V / 0…10 V)
Load resistor
  • ≥1 kΩ / voltage output
  • ≤800 Ω / current output
Measuring range
  • ±10°/±30°/±45°/±60°/±90°
Resolution
  • 0.01 ° CANopen®
  • 0.01 ° SAE J1939
  • 12 bit Analog
Accuracy (+25 °C)
  • Typ. ±0.1°
Temperature coefficient
  • 0.008 °/K
Cross-axis-sensitivity typ.
  • 0.3 % (see general information)
Repeatability
  • ± 0.1 ° (+25 °C)
Sensing rate
  • 1600 Hz
Limit frequency
  • 0.1…25 Hz, 2. order / low-pass filter (Default: 5 Hz)
Interference immunity
  • EN 61000-6-2
  • ECE Reg. No. 10R04
  • ISO 7637-2
  • ISO 11452-2 / ISO 11452-5
Emitted interference
  • EN 61000-6-4
  • ECE Reg. No. 10R04
  • ISO 7637-2 / EN 55025
MTTFd (ISO 13849)
  • High (>100 years)
  • Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately).
Programmable parameters
  • Preset and offset
  • Filter
Diagnostic function
  • Parameter error
Status indicator
  • DUO-LED integrated in housing
Approval
  • UL approval / E63076
Technical data – mechanical design

Dimensions W x H x L
  • 48 x 24 x 52 mm
Protection EN 60529
  • IP 66
  • IP 67
  • IP 68
  • IP 69K
Material
  • Housing: aluminium, coated
Corrosion protection
  • IEC 60068-2-52 Salt mist
  • for ambient conditions CX (C5-M) according to ISO 12944-2
Operating temperature
  • -40…+85 °C (see general information)
Resistance
  • EN 60068-2-6
  • Vibration 20 g, 60-2000 Hz
  • EN 60068-2-27
  • Shock 200 g, 6 ms
Weight approx.
  • 95 g
Connection
  • Flange connector M12, 8-pin
  • Flange connector M12, 5-pin
  • Cable 1 m
