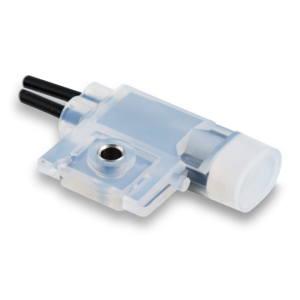

FODK 23P90Y5

FODK 23P90Y5

Ajánlatkérés
PDF letöltése
Cikkszám: 11002190 Kategóriák: , ,

Leírás

Technical data
General data

Type
  • Leakage sensor
Light source
  • Pulsed red LED
Output indicator
  • LED orange
Light indicator
  • LED green
Sensitivity adjustment
  • No
Wave length
  • 875 nm
Measurement type
  • Contact with medium
Electrical data

Response time / release time
  • < 1 ms
Voltage supply range +Vs
  • 12 … 24 VDC
Current consumption max. (no load)
  • 30 mA
Voltage drop Vd
  • <1 VDC
Output function
  • Normally closed (NC)
Output circuit
  • PNP
Output current
  • 50 mA
Short circuit protection
  • Yes
Reverse polarity protection
  • Yes
Mechanical data

Width / diameter
  • 23 mm
Height / length
  • 10.5 mm
Depth
  • 37.2 mm
Design
  • Rectangular
Material (sensing device)
  • PFA
Housing material
  • PFA
Connection types
  • Cable 3 pin, 2 m
Ambient conditions

Operating temperature
  • -25 … +50 °C
Protection class
  • IP 67
