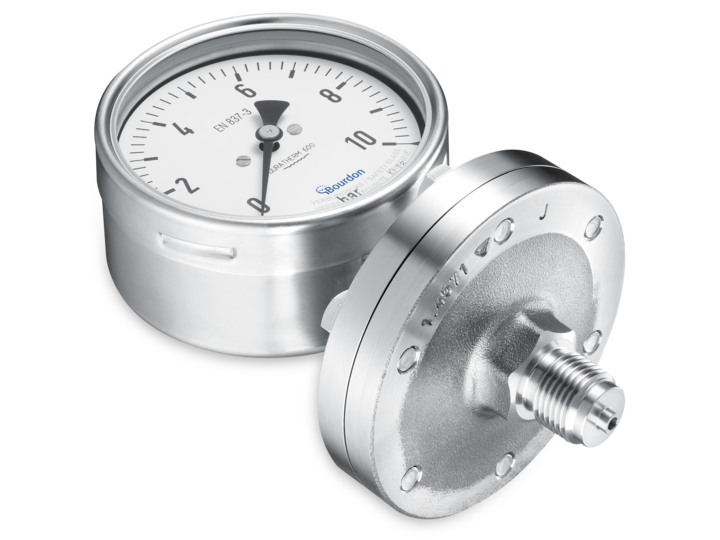

DPx100

DPx100

Ajánlatkérés
PDF letöltése
Kategóriák: , ,

Leírás

Technical data
Housing

Nominal size
  • 100 mm
Window material
  • Laminated safety glass
Protection rating (EN 60529)
  • IP65
Dial
  • White, black scale
Pointer
  • Black, Aluminium
Movement material
  • Stainless steel
Temperature

Ambient temperature
  • -20°C … +60°C
Media temperature
  • 100°C max.
Wetted parts

Process connection material
  • Stainless steel 1.4571 / AISI 316Ti
Diaphragm
  • Duratherm 600
Performance

Accuracy according to EN 837-3
  • Class 1.6
Min. measuring range
  • -1 … 0 bar with 100 mm flange
  • -400 … 0 mbar with 150 mm flange
Max. measuring range
  • 0 … 25 bar with 100 mm flange
  • 0 … 400 mbar with 150 mm flange
Thermal drift (reference: +20 °C)
  • ± 0.8 % FS/10K
Weight

Gauge
  • 1700 g for DPC with 100 mm flange
  • 3000 g for DPC with 150 mm flange
  • 2000 g for DPO with 100 mm flange
  • 3400 g for DPO with 150 mm flange
