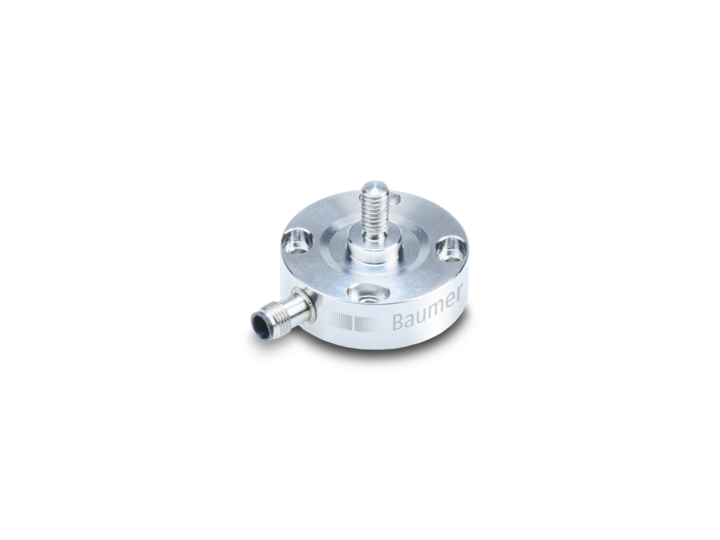

DLM20-SO.500.TP3.M4

DLM20-SO.500.TP3.M4

Ajánlatkérés
PDF letöltése
Cikkszám: 11217603 Kategóriák: , ,

Leírás

Technical data
General data

Measuring range
  • 0 … 50 N
Non-linearity
  • < 0.2 %
Repeatability
  • < 0.1 %
Temperature effect zero
  • < 0.2 % / 10K
Zero point deviation
  • < 20 %
Type
  • Screw-on
Mechanical mounting
  • 4 x M2 screws / M4 thread
Dimensions
  • Ø 25.8 mm x 10 mm
Mechanical data

Overload
  • 150 %
Breaking load
  • 200 %
Fatigue strength
  • >10 Mio cycles at 0…100% FS
Nominal displacement
  • 16 μm
Weight
  • 23 g
Material sensor body
  • Stainless steel, 1.4542
Electrical connection
  • M5, 4 pin, male
Electrical data

Nominal sensitivity
  • 1 mV/V
Bridge resistance
  • 1000 Ω
Supply voltage
  • 0.5 … 12 VDC
Signal polarity positive
  • Tension
Environmental conditions

Operating temperature range
  • -40 … 85 °C
Storage temperature range
  • -40 … 85 °C
Protection class EN 60529, ISO20653
  • IP 67
Compliance and approvals

UL listed
  • E217824
