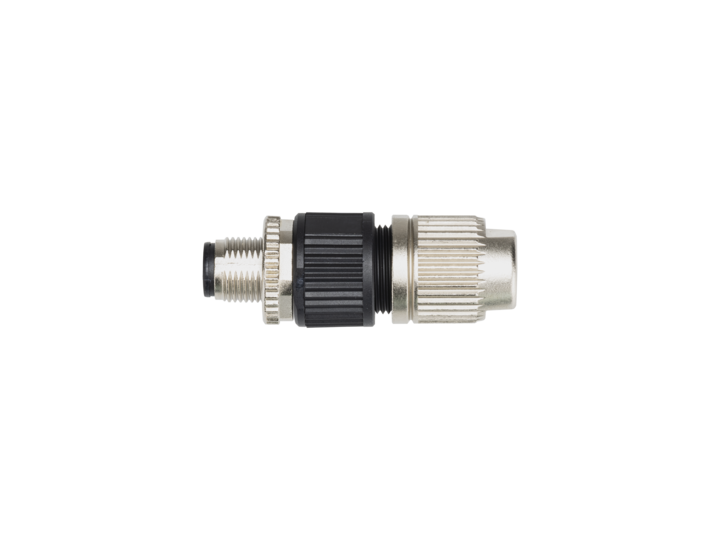

CAM12.A5-11249478

CAM12.A5-11249478

Ajánlatkérés
PDF letöltése
Cikkszám: 11249478 Kategóriák: , ,

In stock

Leírás

Technical data
Side A

Head A: Connection
  • M12
Head A: Angle cable outlet
  • 0°
Head A: Gender
  • Male
Head A: Coding
  • A
Head A: Shielded
  • No
Head A: No. of poles
  • 5
Head A: Tightening torque
  • 0.6 Nm
Head A: Knurled nut material
  • GD-Zn,Ni
Head A: Body color
  • Black
Head A: Gasket material
  • Elastomer
Min. AWG
  • 22
Max. AWG
  • 20
Connection method
  • IDC terminal
Wire cross section (max.)
  • 0.5 mm²
Wire cross section (min.)
  • 0.34 mm²
Cable diameter (max.)
  • 6 mm
Cable diameter (min.)
  • 4.7 mm
Electrical data

Operating voltage
  • max. 50 V AC/DC 0
Operating current per contact
  • max. 4 A
Mechanical data

Head A: Degree of protection
  • IP67
Commercial data

Eclass
  • 27440102
